ACT TVR Induction Packages

The ACT induction packages offer improved engine breathing and torque, responsiveness and each installation responds differently to each engine. Outlined below are the ACT TVR Induction packages with pricing and general benefits.
ACT TVR Speed Six airbox and filter system
  • ACT TVR Speed Six airbox and filter system
Revised ACT TVR Cerbera induction kit
  • Revised ACT TVR Cerbera induction kit
The TVR Cerbera 4.5 induction kit, replaces the original silicone inlet tubes, at the same time offering a performance upgrade potential (in conjunction with the fuel map update during fitting). The kit comprises of:
  • 8 specially formed fuel resistant silicone tubes
  • New carbon fibre airbox back plate
  • 8 x large internal carbon fibre trumpets (not shown in picture).
Please note that this kit is only available through Austec Racing. They will update the fuel map on your car as required. Please allow 2 hrs fitting time on top of retail price.

Induction Packages


Product Code Description
  CFIK01A
TVR Cerbera 4.5 (mk2 induction kit) including MBE chip package, available for mail order.

  CFIK03A
As CFIK3 but including ECU chip package

  CFIK1
TVR Cerbera 4.5 mk 2, induction kit

  CFIK2
Carbon Fibre air-box for TVR Speed 6 , including new filter

  CFIK3
Carbon fibre, air-box for speed six with internal trumpets as pictured, inc air filter

  CFIK4
Carbon trumpets for fitting into original Speed 6 airbox, price is for a set of 6 inc adhesive

  CFIK4A
Carbon trumpet set with ECU chip package for Speed 6

  AIK1
Ported manifold, 45mm trumpet base

  AIK2
Ported manifold, 45mm trumpets, 71mm throttle Plenum

  AIK3
For TVR 500 engines, Enlarged plenum with carbon fibre trumpets, matches existing manifolds






All products, unless otherwise specified, are manufactured and designed by ACT in materials such as Carbon Fibre offering reduced heat conductivity and reduced weight.

Disclaimer:
The products are designed and tested on TVR Rover V8 engined sports cars and can provide the engine characteristic benefits as described on these pages. Please understand that all engines run and perform differently and the application of the components described on these pages is undertaken at the owners risk. ACT recommend that experienced engineers fit our products and it is the responsibility of the owner to notify motor insurance companies where applicable.

ACT Induction Components

The ACT induction performance components offer improved engine breathing and torque, responsiveness and each installation responds differently to each engine. Outlined below are the products, pricing and general benefits.

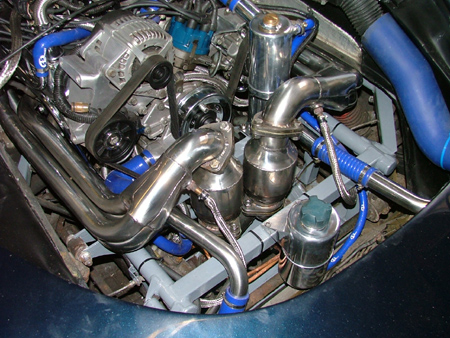

ACT manifolds

Induction TVR


Product Code Individual Induction Hoses
  TI001
Plenum to AFM hose

  TI002
AFM to Filter hose TVR Griffith early

  TI003
AFM to Filter TVR Griffith from 95

  TI004
AFM to front bulkhead Chimaera

  TI005
bulkhead to filter Chimaera



  TI006
Early Griffith kit cylinder filter hoses only with stainless clips, K&N & heat sleeve

  TI006A
Griffith kit as above but without filter

  TI007
Later Griffith kit inc K&N and heat sleeve

  TI007A
Later Griffith kit, as above but without k&N filter

  TI008
Chimaera kit inc clips K&N & heat sleeve

  TI008A
Chimaera kit as above but without k&N filter

  TI009
Silicone elbow TVR Wedge



  TI010
K&N filter TVR Chimaera/Griff/V8S

  TI011
K&N filter TVR Wedge V8

  TI012
K&N filter TVR Griffith 500/ TVR Cerbera

  TI013
Pipercross panel filter for TVR Griffith 500

  TI014
Pipercross panel filter for TVR speed 6

  TI015
Pipercross filter for Chimaera / Early Griffith

  TI016
Mikalor stainless hose clips 70-90mm




Induction components


Product Code Trumpet Sets
  TI020
45mm alloy

  TI021
44mm carbon fibre TVR 5.l

  TI022
38mm carbon fibre superflare TVR 4.0-4.5

  TI023
45mm Carbon superflare







  TI024
Alloy modified to 71mm

  TI025
Alloy modified to 73mm

  TI026
Carbon Fibre plenum case without throttle

  TI027
Carbon Fibre plenum with single 65mm Rover throttle (exch)

  TI028
Carbon Fibre plenum with single 71mm throttle







  TI030
Twin throttle plenum kit inc airbox, with adapter plate to fit existing trumpet base

  TI031
Twin throttle plenum kit inc airbox and new trumpet base







  TI033
Triple throttle plenum kit inc airbox and new trumpet base





ACT Multi Throttle Induction Packages

Twin Throttle with plenum and airbox.
  • ACT twin throttle plenum

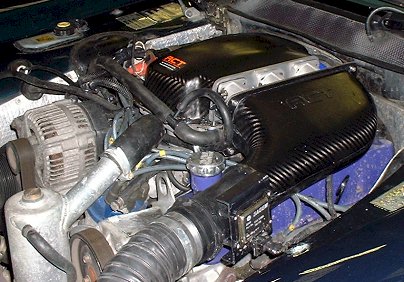

Triple Throttle with plenum and airbox.
  • ACT Triple throttle plenum

An exciting new development ACT can now supply multi throttle carbon fibre induction systems.
The Benefits:

  • Instant throttle response, the driving experience will surprise you.
  • More BHP and torque throughout the rev range. (on a 5L 10-20+bhp & a similar increase in torque)
  • Less heat soak from engine.
  • Improved induction noise.
  • Looks "the business"
  • Air-flow meter can bolt directly onto air-box.

Multithrottle Induction Packages


Product Code
Price + VAT Comments
  ACTMT01 Twin throttle Plenum kit 2x55mm & Air-box throttle potentiometer, linkages etc, comes with adapter plate

  ACTMT02 Twin throttle plenum comprehensive kit, including new trumpet base with 45 mm alloy trumpets, linkage   Stainless flanges
  ACTMT03 Triple plenum comprehensive kit, inc new trumpet base with 45mm alloy trumpets, airbox, throttle pot

  ACTMTA01 54mm throttles (for triple only) , for 350+bhp applications.

  ACTMTA02 Throttle potentiometers

  ACTMTA04 Mark Adams Tornado Chip (in any case modifications to the fueling are required) from:

  ACTMTA05 Bosch Air flow meter, suitable for multi throttle applications.



The system fitted to a TVR Chimaera 500 gave a huge increase to throttle response

Disclaimer:
The products are designed and tested on TVR Rover V8 engined sports cars and can provide the engine characteristic benefits as described on these pages. Please understand that all engines run and perform differently and the application of the components described on these pages is undertaken at the owners risk. ACT recommend that experienced engineers fit our products and it is the responsibility of the owner to notify motor insurance companies where applicable.



  • The main benefit being increased torque as well as increased top end power. Obviously by just saying these components offer improved drivability, power, torque and overall performance is not enough and to that end the components mentioned on these pages have been road tested on TVR V8 sports cars. The following details are supplied based on installations on three such cars.

    Whilst engine improvement gains are different on each engine the following power graphs show examples of the performance differences with ACT components installed.

    Click each graph to see a full size picture

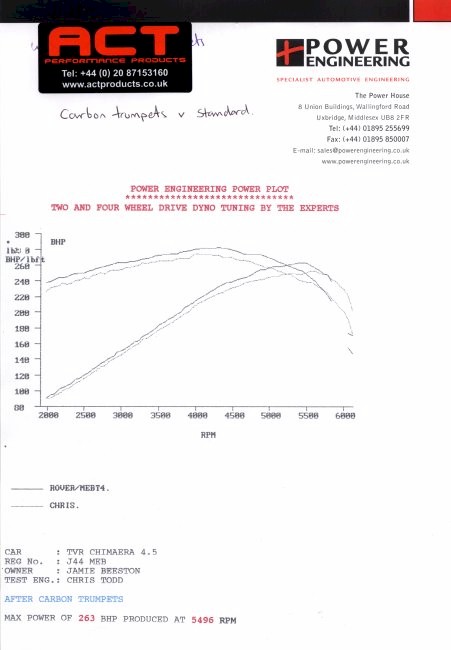

    Power graph showing ACT trumpets benefit

    This graph shows the benefits of the trumpets alone - the car had already been chipped and tuned by Mark adams and this is shown in the lower curve.

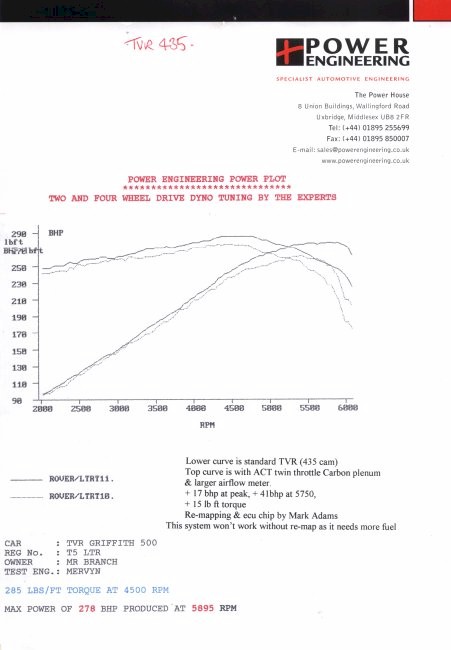

    Power graph showing twin plenum installion on TVR Griffith

    A Twin Plenum installation on a 5 litre TVR Griffith

    Power graphs - explained

    ACT always like to compare our cars performance figures in BHP and torque. Even more important is when we compare cars that are the "same".  So the TVR Griffith 500 gives out (according to TVR) 340BHP however when you go to a rolling road to check this figure out you rarely find that these figures are achieved.

    It is important to mention that when performing power runs on rolling roads power figures will vary , depending on various factors such as:

    • state of tune and servicing of engine

    • temperature and atmosphere - dry, humid, rainy, cold etc

    • power loss through the transmission

    Engines tested on bench dynos will give a higher figure than a rolling road , even though rolling roads will calculate transmission losses and can be calibrated to take into account the ambient air temperature and atmospheric pressure . This is because the engine will have cool air around it , with cooler inlet temperature. On top of this rolling roads will vary , however wheel figures are normally fairly consistent .

    Typical example

    Modified 4.5L Rover V8 ( stage 3 heads) 290 bhp on a bench Dyno . 270 at the flywheel on a rolling road , 220 at the wheels.

    Its not surprising that manufacturers often use bench dyno figures.

    It is important that we don't forget Torque ,after all this is what Rover engines are noted for . When observing a power graph we should pay more attention to the shape of the torque curve ,rather than max BHP !
